DEI1167-TES-G
The DEI1167 is an eight-channel parallel-output discrete-to-digital interface BICMOS device. It senses eight Ground/Open discrete signals of the type commonly found in avionic systems. The data is read from the device via a parallel 3-state output.
Features
- Eight GND/OPEN discrete inputs
- Meet electrical requirements for ABD0100 GND/OPEN discrete input.
- Hysteresis provides noise immunity.
- Internal pull up resistor
- Internal isolation diode
- Inputs protected from Lightning Induced Transients per DO160D, Section 22, Cat A3 and B3.
- 3.3V or 5V TTL/CMOS compatible digital IO
- 8 tri-state outputs
- /CS & /OE control inputs
- Logic Supply: 3.3V or 5V
- Analog Supply: 12V

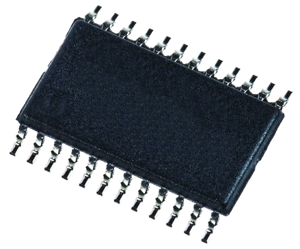

- 24L TSSOP package
Attributes
temp range: -55°C - 85°C
product package type: 24 TSSOP G
burn in:
channels: 8
lightning protection:
Years to EOL: 10
errata sheets: ES-MW-01167-01-A.pdf
tri state outputs:
fused outputs:
Analog PSU: 12
Digital PSU: 3.3/5
ABD0100:
discrete input: OPEN/GND
output type: parallel
package description: 24 Pin Thin Shrink Small Outline Package
package type: Surface Mount
JEDEC: MO-153-AD
RoHS:
Product Status: Active
Functional Description The DEI1167 is an eight-channel parallel-output discrete-to-digital interface BICMOS device. It senses eight Ground/Open discrete signals of the type commonly found in avionic systems. The data is read from the device via a parallel 3-state output.
